Crimp Guide for Size 4 Solid Contacts

These Pins and Sockets work with the Crimp Tools below.

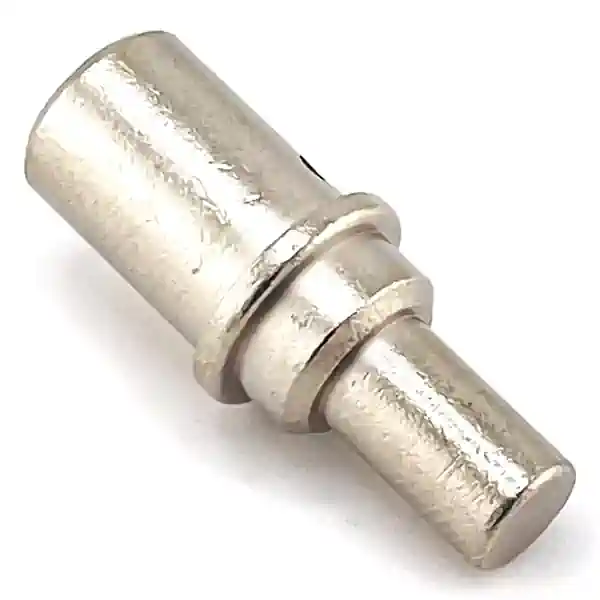

Deutsch 0460-204-0490 Pin

0460-204-0490 Pin

6 AWG

Deutsch 0462-203-04141 Socket

0462-203-04141 Socket

6 AWG

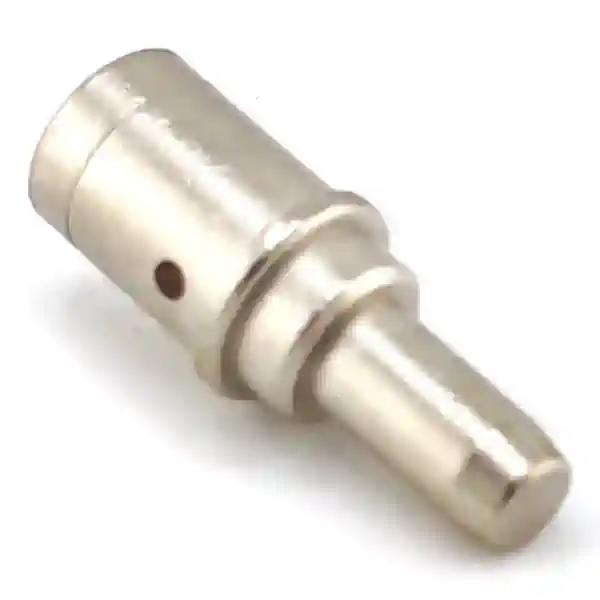

Deutsch 5960-203-04141 Pin

5960-203-04141 Pin

4 AWG

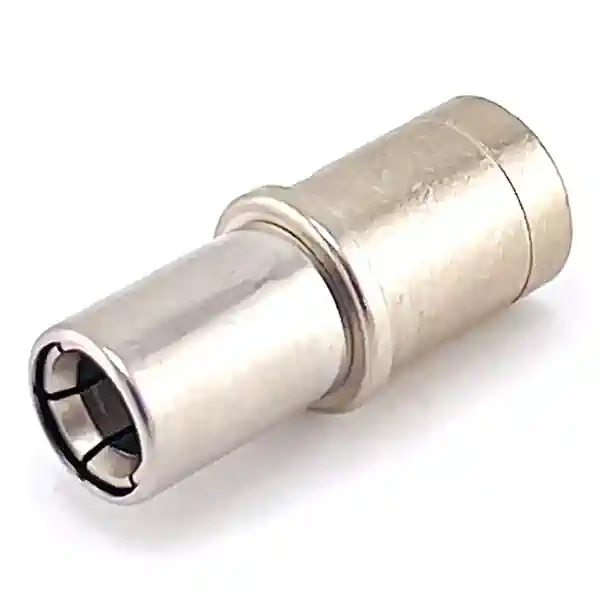

Deutsch 5962-203-04141 Socket

5962-203-04141 Socket

4 AWG

These Crimp Tools work with the Pins and Sockets above.

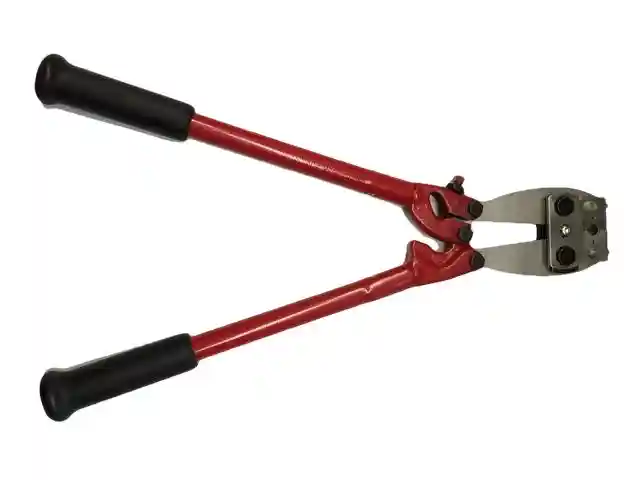

HDT-04-08 Crimp Tool

HDT-04-08 Two-Indent Crimp Tool

The HDT-04-08 Hand Crimp Tool provides a two-indent crimp for 4-10 AWG conductors with Solid style, Size 4 and Size 8 Pins and Sockets.

Download HDT-04-08 Instructions.pdf 123 KB
