Crimp Guide for Size 20 Solid Contacts

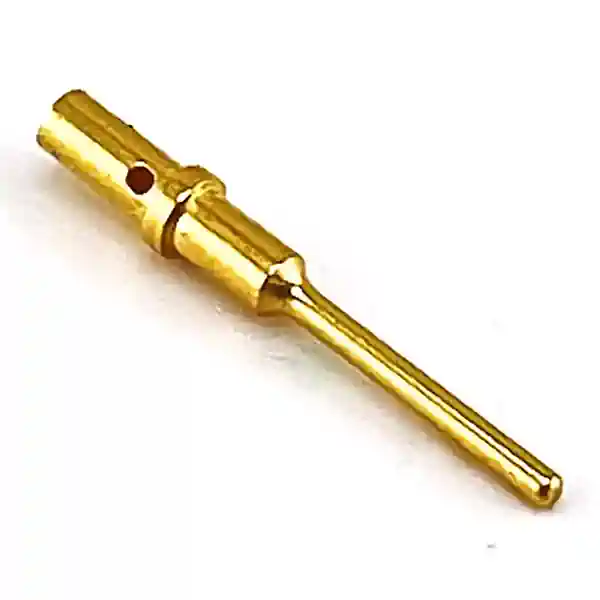

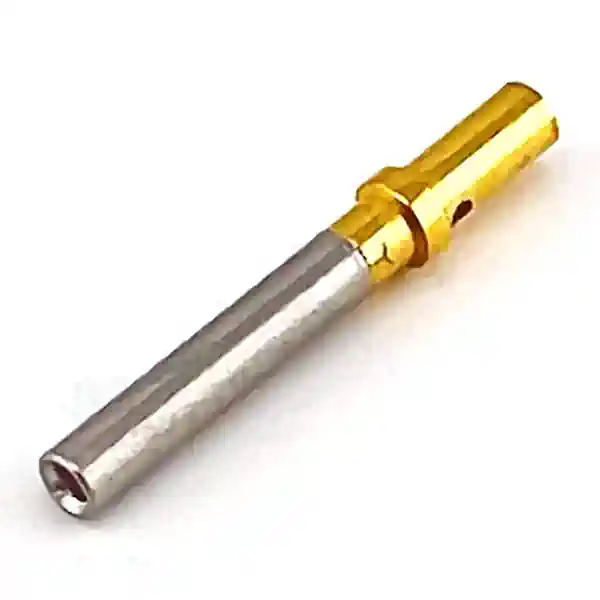

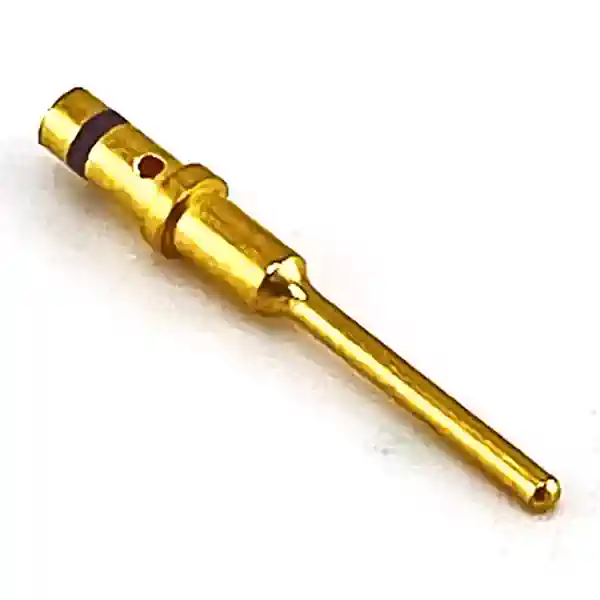

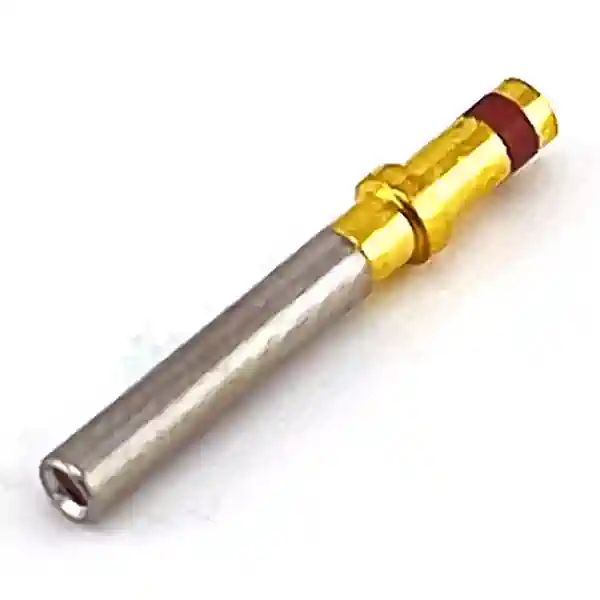

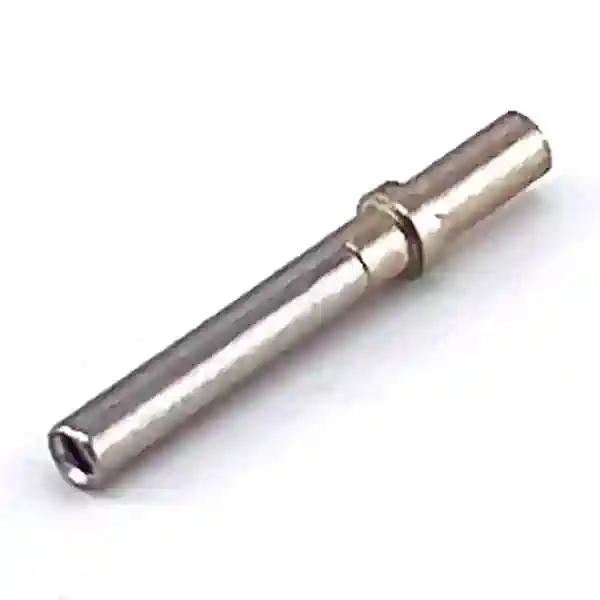

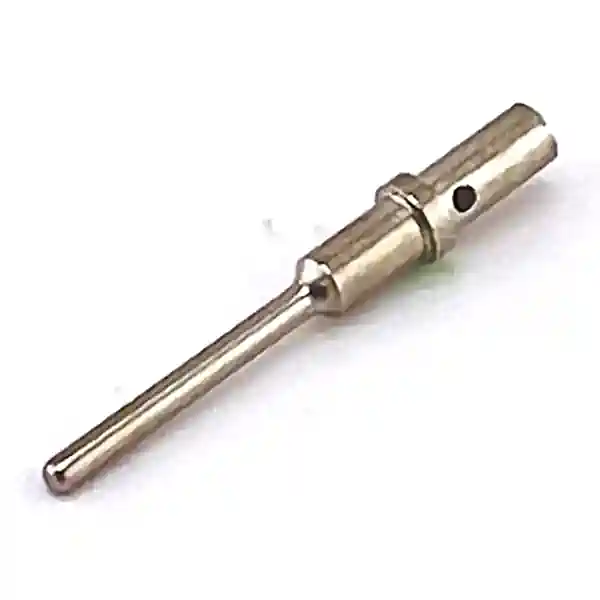

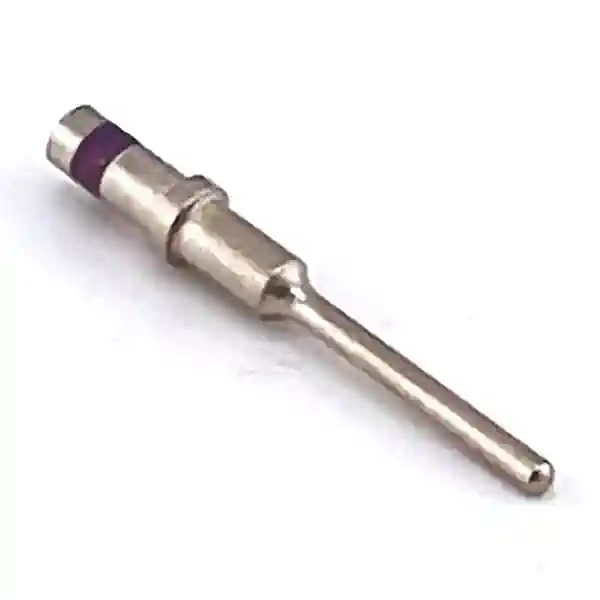

These Pins and Sockets work with the Crimp Tools below.
These Crimp Tools work with the Pins and Sockets above.
The HDT-48-00 Hand Crimp Tool provides a symmetrical four-indent crimp for 12-20 AWG conductors with Solid style, Size 12, 16 and 20 Pins and Sockets.
The HDT-50-00 Hand Crimp Tool provides a symmetrical single-indent crimp for 12-20 AWG conductors with Solid style, Size 12, 16 and 20 Pins and Sockets.
The 2372208-1 Hand Crimp Tool provides a single-indent crimp for 12-20 AWG conductors with Solid style, Size 12, 16 and 20 Pins and Sockets.
NOTE: This Crimp Tool replaces Crimp Tool HDT-1561
The HDT-1561 Hand Crimp Tool provides a two-indent crimp for 12-20 AWG conductors with Size 12, 16 and 20 Solid style Pins and Sockets.
NOTE: This Crimp Tool is OBSOLETE and has been replaced by Crimp Tool 2372208-1
