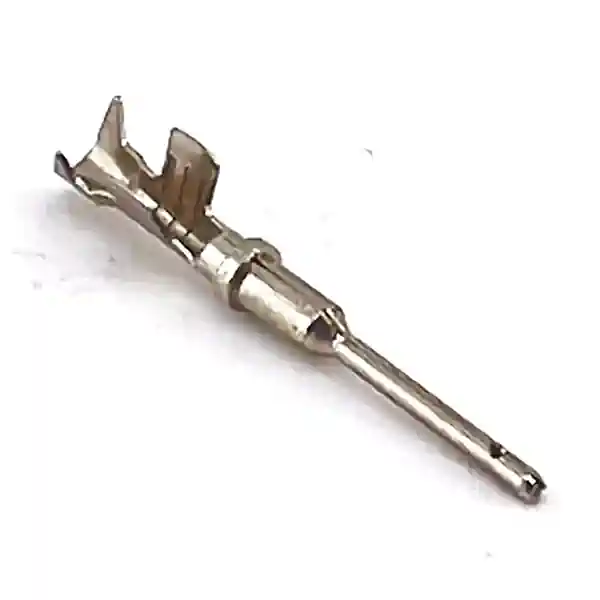

Crimp Guide for 1060-20-0222 Pin and 1062-20-0222 Socket
These Pins and Sockets work with the Crimp Tools below.
These Crimp Tools work with the Pins and Sockets above.

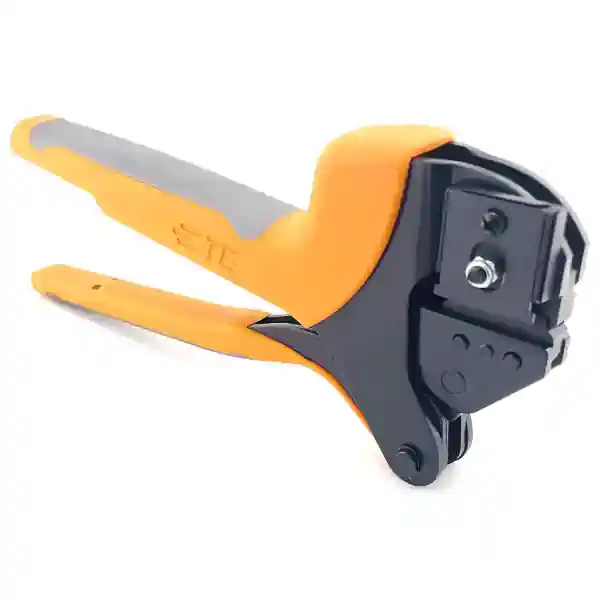

The 2390511-1 Hand Crimp Tool will crimp the above 106*-20-02** Pin and Socket with Wire Sizes 18-22 AWG, .051"-.085" Insulation Diameter.
NOTE: This Crimp Tool replaces Crimp Tool DTT-20-02 for this application.
The DTT-20-02 Hand Crimp Tool will crimp the above 106*-20-02** Pin and Socket with 18-22 AWG, Type TXL Insulation conductors.
NOTE: This Crimp Tool is OBSOLETE and has been replaced by Crimp Tool 2390511-1 for this application.
