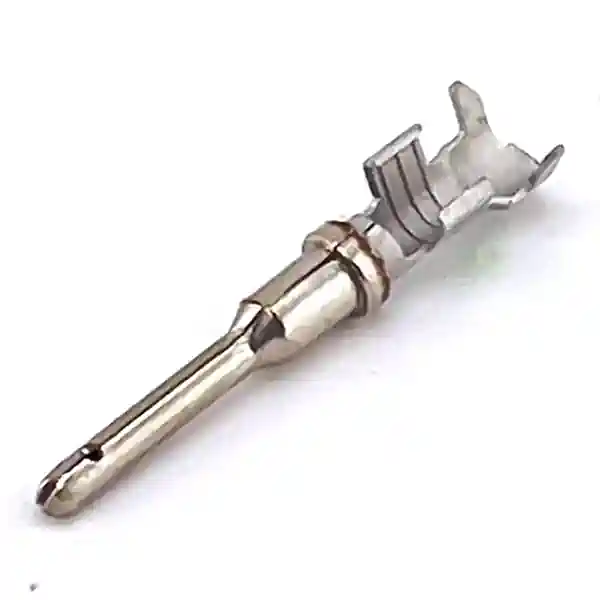

Crimp Guide for 1060-16-0122 Pin and 1062-16-0122 Socket
These Pins and Sockets work with the Crimp Tools below.
These Crimp Tools work with the Pins and Sockets above.
The DTT-16-00 Crimp Tool accomodates 14-16 AWG, Types TXL, GXL and SXL conductors with 106*-14-01**, 106*-16-01**, 106*-16-07**, and 106*-16-09** contacts.
NOTE: The DTT-16-00 Crimp Tool is OBSOLETE and has been replaced by Crimp Tool 2388970-1 for 16 AWG, .140" Max Insulation conductors with 10**-16-0122 contacts and 14 AWG, .150" Max Insulation conductors with 10**-14-0122 contacts.
The DTT-16-01 Crimp Tool accommodates 18 AWG, Types TXL, GXL and SXL conductors with 106*-16-01**, 106*-16-06**, 106*-16-07** and 106*-16-09** contacts. The DTT-16-01 Crimp Tool also has a 20 AWG cavity, but there is no application spec.
NOTE: The DTT-16-01 Crimp Tool is OBSOLETE and has been replaced by Crimp Tool 2390264-1 for 18 AWG, .075"-.144" Max Insulation conductors with 106*-16-01** contacts.
