Crimp Guide for 1060-14-0122 Pin and 1062-14-0122 Socket
These Pins and Sockets work with the Crimp Tools below.
These Crimp Tools work with the Pins and Sockets above.

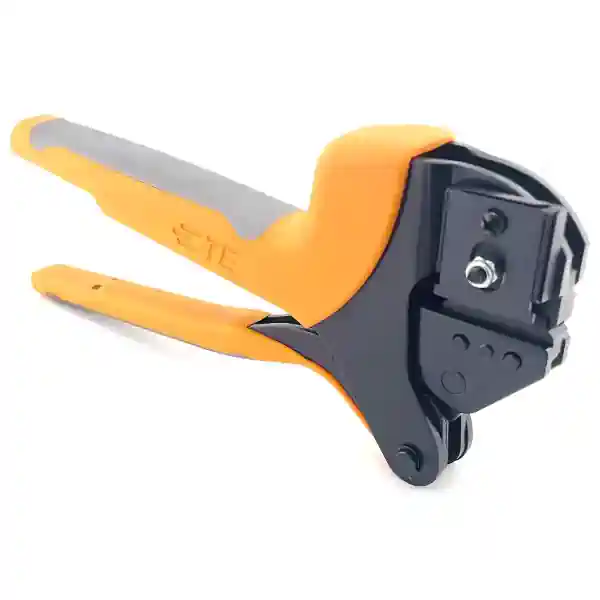

The 2388970-1 Hand Crimp Tool will crimp the above 106*-14-01** Pin and Socket with Wire Sizes 14 AWG, .150" Max Insulation Diameter.
NOTE: This Crimp Tool replaces Crimp Tool DTT-16-00 for this application.

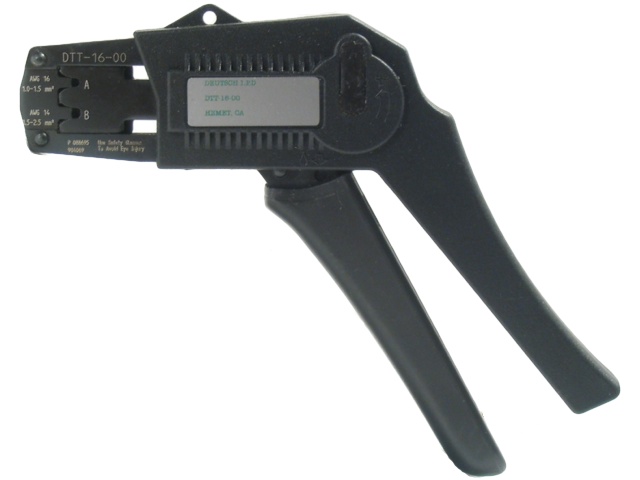

The DTT-16-00 Hand Crimp Tool will crimp the above 106*-14-01** Pin and Socket with Wire Sizes 14-16 AWG, Types TXL, GXL and SXL conductors.
NOTE: This Crimp Tool is OBSOLETE and has been replaced by Crimp Tool 2388970-1 for this application.
