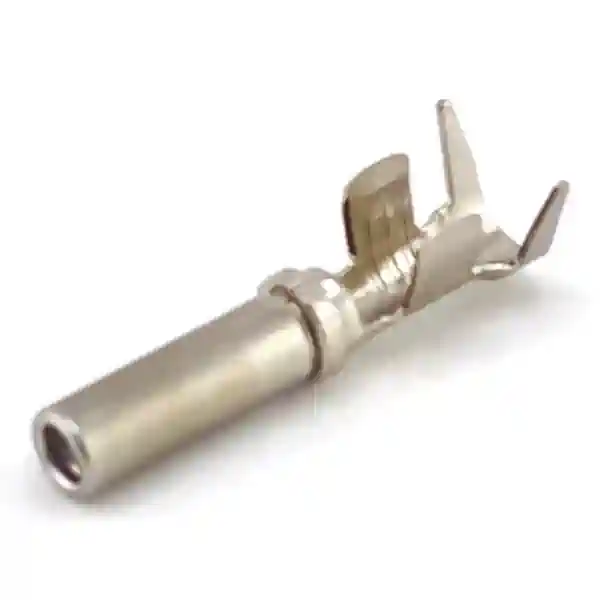

Crimp Guide for 1060-12-0222 Pin and 1062-12-0222 Socket
These Pins and Sockets work with the Crimp Tools below.
These Crimp Tools work with the Pins and Sockets above.

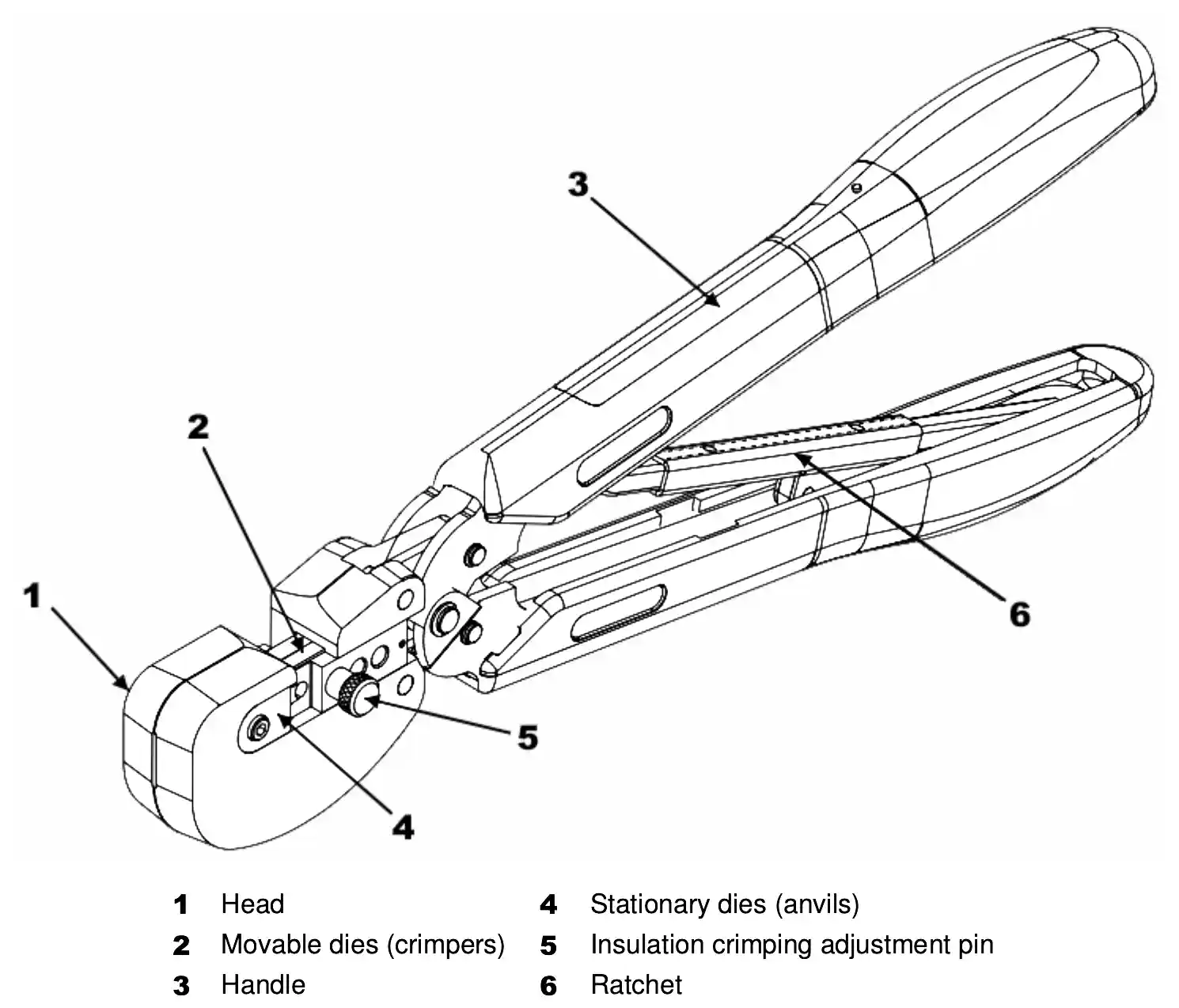

The 2379255-1 Hand Crimp Tool will crimp the above 106*-12-02** Pin and Socket with Wire Size 10 AWG, .150"-.205" Insulation Diameter.
NOTE: This Crimp Tool replaces Crimp Tool DTT-12-01 for this application.

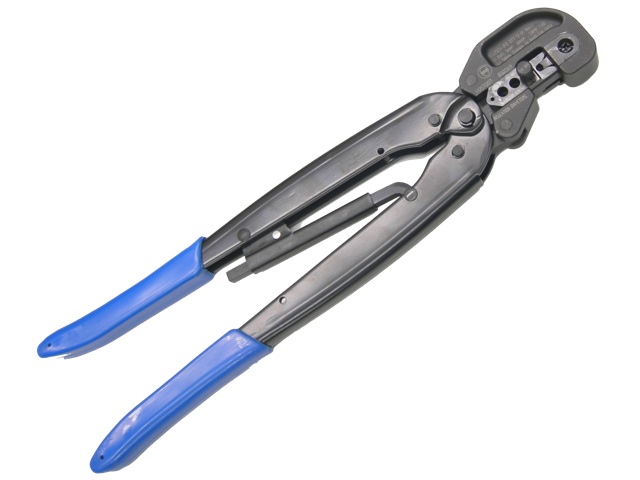

The DTT-12-01 Hand Crimp Tool will crimp the above 106*-12-02** Pin and Socket with Wire Size 10 AWG, Types TXL, GXL and SXL conductors.
NOTE: This Crimp Tool is OBSOLETE and has been replaced by Crimp Tool 2379255-1 for this application.
