Deutsch Crimp Tools
Deutsch Crimp Tools Feature
- Genuine Deutsch Crimp Tooling
- We inspect all tools before they leave our facility.
Click image to enlarge
Deutsch HDT-48-00 Hand Crimp Tool provides a symmetrical four-indent crimp for 12-20 AWG conductors with Solid style, Size 12, 16 and 20 Pins and Sockets.
Click image to enlarge
Deutsch HDT-50-00 Hand Crimp Tool provides a symmetrical single-indent crimp for 12-20 AWG conductors with Solid style, Size 12, 16 and 20 Pins and Sockets.
Click image to enlarge
Deutsch 2372208-1 Hand Crimp Tool provides a single-indent crimp for 12-20 AWG conductors with Solid style, Size 12, 16 and 20 Pins and Sockets.
Click image to enlarge
Deutsch 2388970-1 Hand Crimp Tool accommodates 14 AWG, .150" Max Insulation Diameter conductors with Size 16, 106*-14-01** Stamped and Formed contacts and 16 AWG, .140" Max Insulation Diameter conductors with Size 16, 106*-16-01** Stamped and Formed contacts.
Click image to enlarge
Deutsch 2389783-1 Hand Crimp Tool accommodates 18-20 AWG, .055"-.100" Insulation Diameter conductors with Size 16, 106*-16-06** Stamped and Formed contacts.
Click image to enlarge
Deutsch 2390264-1 Hand Crimp Tool accommodates 18 AWG, .075"-.144" Insulation Diameter conductors with Size 16, 106*-16-01** Stamped and Formed contacts.
Click image to enlarge

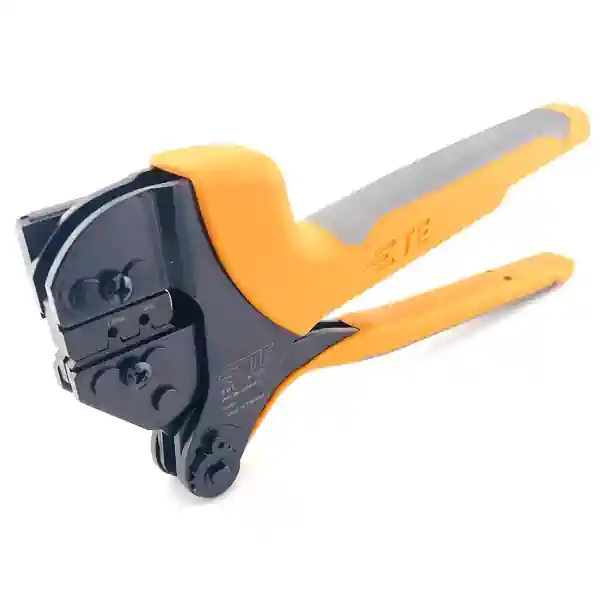

Deutsch 2392463-1 Hand Crimp Tool accommodates 12 AWG, .075"-.140" Insulation Diameter conductors with Size 16, 106*-16-12** Stamped and Formed contacts.
Click image to enlarge
Deutsch 2392570-1 Hand Crimp Tool accommodates 16 AWG, .075"-.140" Insulation Diameter conductors with Size 16, 106*-16-12** Stamped and Formed contacts.
Click image to enlarge
Deutsch 2391435-1 Hand Crimp Tool accommodates 16-20 AWG, .125" Max Insulation Diameter conductors with Size 20, 106*-20-01** Stamped and Formed contacts.
Click image to enlarge
Deutsch 2390511-1 Hand Crimp Tool accommodates 18-22 AWG, .051"-.085" Insulation Diameter conductors with Size 20, 106*-20-02** Stamped and Formed contacts.
Click image to enlarge
Deutsch 2389167-1 Hand Crimp Tool accommodates 12 AWG, .113"-.176" Insulation Diameter conductors with Size 12, 106*-12-01** Stamped and Formed contacts.
Click image to enlarge
Deutsch 2389168-1 Hand Crimp Tool accommodates 14 AWG, .113"-.176" Insulation Diameter conductors with Size 12, 106*-12-01** Stamped and Formed contacts.
Click image to enlarge
Deutsch 2379255-1 Hand Crimp Tool accommodates 10 AWG, .150"-.205" Insulation Diameter conductors with Size 12, 106*-12-02** Stamped and Formed contacts.
Click image to enlarge
Deutsch HDT-04-08 Hand Crimp Tool provides a two-indent crimp for 4-10 AWG conductors with Solid style, Size 4 and Size 8 Pins and Sockets.
